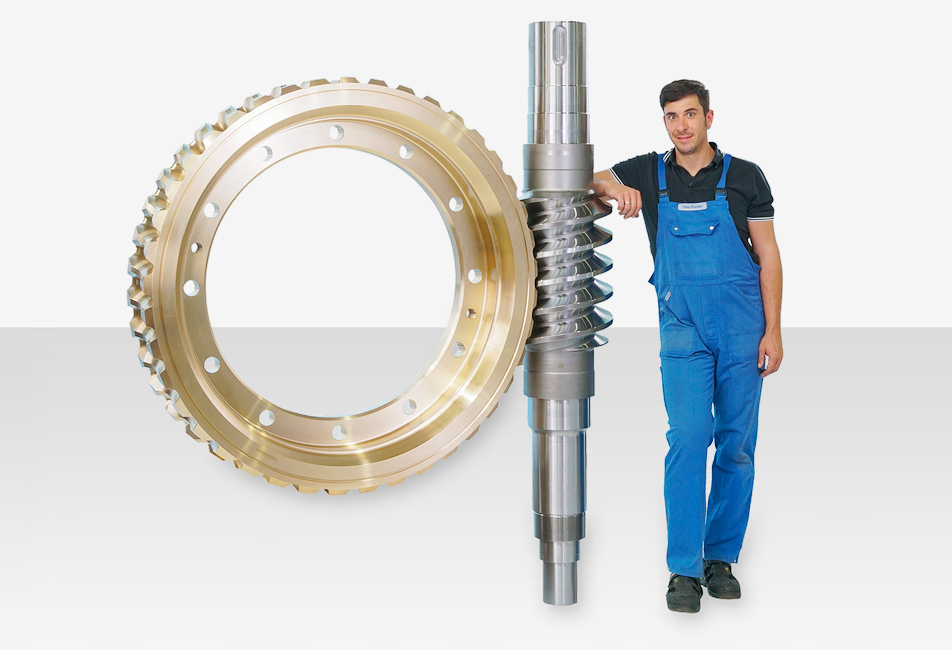

Worm Gears

Normal, duplex worm gears, custom designs

In addition to the OTT worm gears we also manufacture other
worm gear types as listed.

Standard worm gears
According to DIN or customer specifications.

Duplex worm gears
The Duplex worm gear has two different pitches. The backlash can be adjusted by moving the worm gear axially.

Special design worm gears
With custom designs the tooth height is increased, the pressure angle reduced and the partition of the tooth width between worm and ring gear modified.

Technical data:

Ring gear diameter (Ø) max 3,300 mm
Worm diameter (Ø) up to max 500 mm
Ratio 2 to 720

(Larger diameters available on request)
